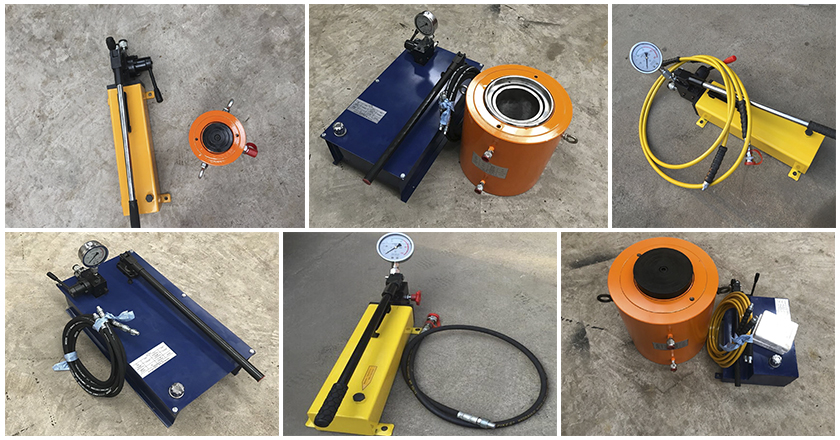

Hydraulic Hand Pumps
1.Compact design
2.Handle lock for easy carrying.
3.Lower handle effort minimizes operator fatigue.
4. Internal pressure relief valve for overload protection.
5. Large oil capacities to power a wide variety of cylinders and tools.
The parameter of hydraulic cylinder hand pumps
| Technology data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | SYB-1 | SYB-2 | SYB-3 | SYB-2S | |||||
| Pressure | Max | Mpa | 63Mpa | 63Mpa | 63Mpa | 63Mpa | |||
| Pressure | low | Mpa | 1 | 1 | 1 | 1 | |||
| Flow | Max | ML/Time | 2.3 | 2.3 | 2.3 | 2.3 | |||
| Flow | low | ML/Time | 12.5 | 12.5 | 12.5 | 12.5 | |||
| Weight | kg | 9 | 10 | 12 | 15 | ||||
| Dimension | mm | 630*175*170 | 650*180*145 | 650*380*145 | 600*160*140 | ||||
| Oil capacity | L | 0.7 | 3 | 6 | 3 | ||||
Application
