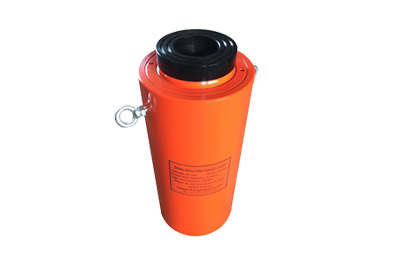

Single Acting Hollow Hydraulic Jack
single acting hydraulic jack, it has safe protect pressurizer, built-in pressure relief valve in order to protecting over loading, and it is good for safe operate. All the model can be customized according to client’s requirements. The hydraulic cylinder is main used for electric power, building, machine manufacturer, mining, subway, bridge and shipbuilding and kinds of industry for installing, lifting and tear down.
Features
1.Single acting hollow cylinder.
2.It is matching single-track manual oil pump.
3.It can be customized.
| Technology data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Mode | Capacity ton(KN) | Stroke mm | Efficiency area (cm2) | Capacity of hydraulic oil (cm3) | Closed height A (mm) | Extend height B (mm) | Outer diameter D (mm) | Center hole Y (mm) | Weight (Kg) |
| "> RCH-120 | 12(128) | 8 | 17.9 | 14 | 56 | 63 | 70 | 19.6 | 1.5 |
| RCH-121 | 12(128) | 41 | 17.9 | 73 | 121 | 162 | 70 | 19.6 | 2.8 |
| RCH-1211 | 12(128) | 41 | 17.9 | 73 | 121 | 162 | 70 | 19.6 | 2.8 |
| RCH-123 | 12(128) | 76 | 17.9 | 136 | 184 | 260 | 70 | 19 | 4.4 |
| RCH-202 | 20(196) | 51 | 30.5 | 15.6 | 162 | 213 | 99 | 26.9 | 7.7 |
| RCH-206 | 20(196) | 155 | 30.5 | 473 | 306 | 461 | 99 | 26.9 | 14.1 |
| RCH-302 | 30(294) | 63 | 46.6 | 294 | 179 | 242 | 127 | 33.3 | 10.9 |
| RCH-306 | 30(294) | 156 | 46.6 | 727 | 330 | 486 | 127 | 33.3 | 21.8 |
| RCH-603 | 60(588) | 76 | 82.2 | 625 | 248 | 324 | 159 | 53.8 | 28.1 |
| RCH-606 | 60(588) | 152 | 82.2 | 1249 | 324 | 476 | 159 | 53.8 | 35.4 |
| RCH-1003 | 100(980) | 76 | 133.1 | 1012 | 254 | 330 | 213 | 79 | 59.9 |
Detailed photos
